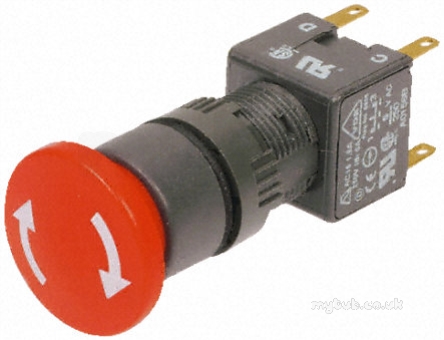

||Modular construction illuminated and non illuminated Pushbutton, Keylock, Rotary and Emergency Stop switches to fit industry standard 16mm diameter cut-outs. Round, square and rectangular operators can be fitted to single, double, three and four pole switch blocks for a variety of applications.,A complete Pushbutton switch assembly requires an operator, switch block, lens and lamp (if illuminated). Keylock and Rotary switches require an operator and switch block, while the Emergency Stop switch comes as a complete assembly supplied with a double pole N/C switch block and a yellow self adhesive label.
• Panel sealing to IP65
• Gold plated silver contacts
• Pushbuttons illuminated with T1 ¾ midget groove filament lamp or LED
• Keylocks supplied with 2 keys
• Rotary lever switches 219-5784 & 219-5762 feature CW lever rotation, all others are CCW lever rotation
• For switch blocks & lenses see stk nos 219-5829 & 239-3483 typically
• Selection of accessories includes flipguards, flush mounting bezels, PCB sockets and installation tools, see stk nos 278-1262, 325-2800, 325-2816 & 241-5757 typically
