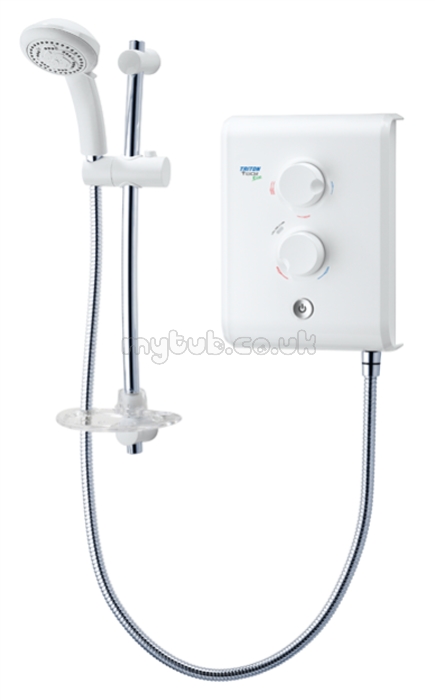

Triton T80z Eco Shower 8.5 Kw White/chrome Plated

Triton product

27% 27 percent off rrp

Department:

Triton Electric Showers

Triton T80z Eco Shower 8.5 Kw White/chrome Plated

Operating Features
• Average flow rate of below 6 litres per minute
• 28% more energy efficient than a mixer shower and conventional boiler (based on 78% boiler efficiency)
• 99.7% energy efficient
• Economical option that only heats water as and when required
• Push button start/stop
• Separate temperature and power controls
• Low pressure indicator
• Rub-clean showerhead - 5 spray patterns

TRITON T80Z 8.5KW ECO SHOWER WHITE/CHROME The T80Z Eco takes ease of installation to new levels, just open the box and its ready to fit in minutes, from new or as a retrofit. Electric Connections - The Z Uni-fit kit (optional extra) allows you to extend the electrical connections within the unit

Fixing Points - Generous footprint covers most existing fixing points

Flexibility - Retro fits all previous T80 models as well as the Mira Sport / Zest / Play / Vie and Aqualisa Quartz

Removable Pipe Entry Trims - To reduce the need for cutting on water and cable entry points

Installation Template - Mark out all of the water, electric and fixing points before starting the installation

More Room to Work - Offers generous room to make the necessary connections and fixings

Reliable Parts - Each component is tested to over 7500 operations, equivalent to a 5 year life cycle

Strong Rigid Backplate - Does not flex and distort on uneven tiles

One Part Cover - Fits completely over the backplate to avoid alignment issues on uneven tiles

Removable Filter - For easy access and maintenance

Specification
Temperature Control - Stabilised

Power Ratings - 8.5 kW

Inlet Connection - 15mm compression

Water Entry Points - Top, bottom or back (left hand side); Bottom or back (right hand side)

Cable Entry Points - Top, bottom, back (left or right hand side unit - Z kit is required for cable entry from the right)

Outlet Connection - 1/2 BSP

Plumbing System - Mains pressure cold water

Minimum Running Pressure / Flow
1 Bar at 8l/min for 7.5kW, 8.5kW & 9.5kW

1.5 Bar at 11 l/min for 10.5 kW

Note: the shower will continue to operate on a reduced heat setting if the running pressure falls to 0.7 Bar (1.2 Bar for 10.5kW). There will be a noticeable reduction in flow and temperature from the showerhead

If the stated flow rates are not available, it may not be possible to achieve optimum performance from the unit throughout the year

The T80Z Eco flow rate is limited to 6 l/min, during the warmer months it may be necessary to select the economy power setting

Maximum Static Pressure - 10 Bar

Approvals -BEAB, CE, BKM

Guarantee - 2 years

Manufacture:

Triton

Notes:

Colour: White & Chrome
Dim 1 (mm): 334
Dim 2 (mm): 225
Dim 3 (mm): 104
Finish: Chrome Plated
KW: 8.5 Kw
Max System Pressure Cold (Bar): 1 bar
Min System Pressure Cold (Bar): 10 bar
Model Number: T80Z
Pressure: 1.0 bar
Range: T80Z
Style: Modern
