Honeywell M7410e 2026 24v 0/2-10vdc Act Plus M/o

Honeywell product

26% 26 percent off rrp

Department:

Honeywell Commercial HVAC Controls

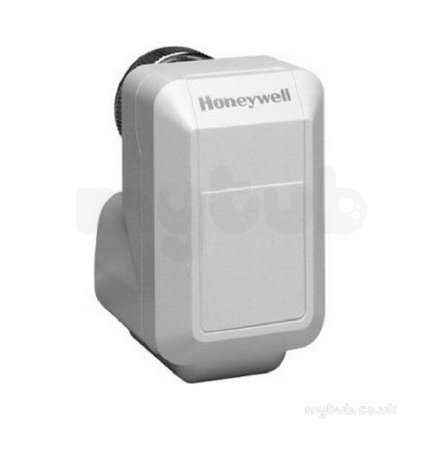

Honeywell M7410e 2026 24v 0/2-10vdc Act Plus M/o

• M7410 A and C suitable for three-position modulating
control without proportional feedback
• M7410 E suitable for 0...10V and 2...10V controller
output signal (adjustable on site)
• Small size allows installation where space is limited
• Low power consumption
• Reliable longtime operation because mechanical feedback potentionmeters and mechanical endswitches
are not required
• Magnetic coupling for stem force limitation and selfadjustment of the close-off point
• Supplied with pre-wired connection cable
• Simple, standardized M30 x 1,5 valve/actuator coupling - no tools required for mounting
• Visual valve position indicator furnished with actuator

HONEYWELL M7410E 2026 24V 0/2-10VDC ACT + M/O The Honeywell actuators M7410 A, M7410 C and M7410 E provide floating or modulating control of specified Honeywell V9xxx Series small linear valves.
They are used in fan coil units, induction units, small reheaters and recoolers and for zone control applications.
They are employed in electronic temperature control systems using hot and/or cold water as controlled medium. M7410 actuators are suitable for Honeywell Excel Series controllers as well as for Honeywell individual room temperature controllers. These controllers track the precise valve position by counting the number of individual control pulses which move the valve from one position to another. For this reason, the actuators do not need endswitches or a feedback potentiometer. The absence of these mechanical components ensures longtime reliability.
M7410 A and M7410 C actuators are also compatible with any controller providing intelligent position control and having a built-in shut-off function. The M7410 E actuator is fully compatible with all controllers providing 0...10V or 2...10V output signals.
A microprocessorbased high-performance positioner guarantees accurate control. Due to an automatic synchronization function the close-off point is self-adjusting. Based on a running time of 150 s, valve positioning and flow adjustment is very exact.
The M7410 E also has no mechanical feedback potentiometer or mechanical endswitches M7410 Series actuators are well suited for applications where space is limited and minimum power consumption is required. The actuators are both attractive and robust in design.

Manufacture:

Honeywell
