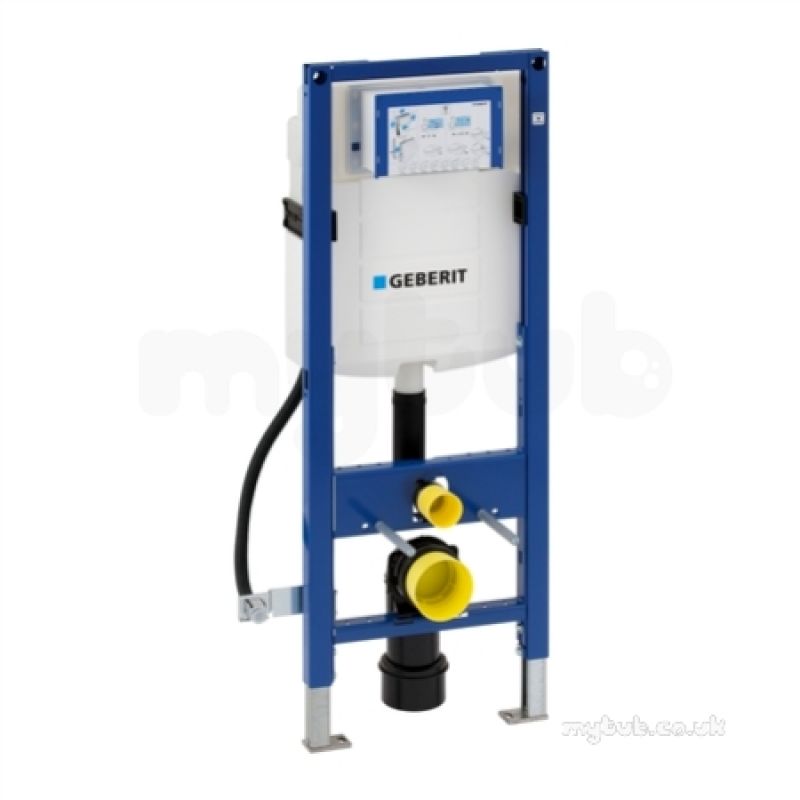

Duofix Wc Frame 1.12m Plus Up320 For Dis Wc

26%

• Self-supporting
• Frame with C profile 40/40 mm
• Powder-coated frame, ultramarine blue
• Galvanised leg supports, steplessly adjustable 0 - 200 mm
• Feet can be retracted 5 cm
• Rotating foot plate, for installation in UW50 and UW75 profiles
• Frame with holes ø 9 mm for fastening in wood frame construction
• Sound-absorbing actuator rods, tool-free, fast adjustment
• Concealed cistern fully insulated against condensation
• Concealed cistern for tool-free mounting and maintenance
• Frame height 1120 mm
• Tool-free fastening for outlet bend, sound-absorbing, adjustable in depth with 8 positions, adjustable range 45 mm
• Connection hose to angle stop valve can be screwed without tools
• Water supply connection at centre back or at the top
• Geberit Sigma concealed cistern 12 cm (UP320) with front actuation
• Dual flush with Sigma80, Sigma60, Sigma50, Sigma20, Sigma01 or Bolero flush plates
• Single flush with Sigma10, Rumba, Mambo or Tango flush plates
• The protection cover protects the service opening against moisture and dirt
• Not suitable for use with flush buttons
• The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length
• Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
• Self-locking feet for tool-free alignment of the frame, (friction feet have to be locked with spanner)
• For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1)

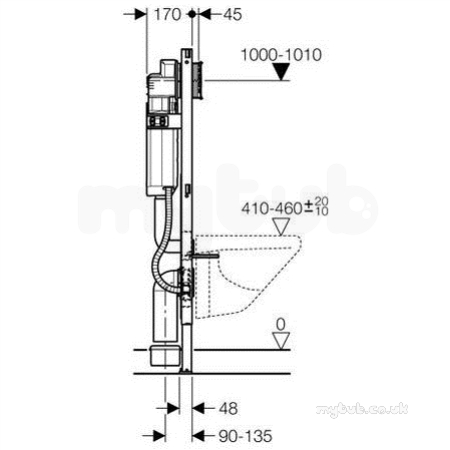

• Adjustable installation height of the WC, 410 - 460 mm
• Flush valve features settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1)
