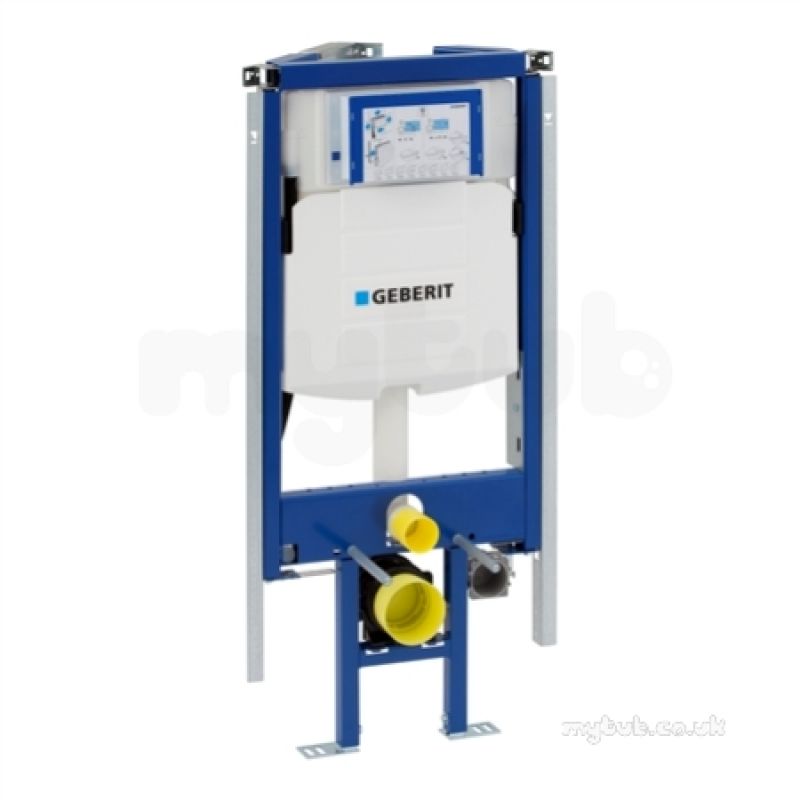

Duofix Wc Corner Frame 1.12m With Up320

23%

• Self-supporting
• Frame with C profile 40/40 mm
• Powder-coated frame, ultramarine blue
• Feet can be retracted 5 cm
• Rotating foot plate, for installation in UW50 and UW75 profiles
• Frame with axis centre mark
• Sound-absorbing actuator rods, tool-free, fast adjustment
• Concealed cistern fully insulated against condensation
• Concealed cistern for tool-free mounting and maintenance
• Frame height 1120 mm
• Connection hose to angle stop valve can be screwed without tools
• Water supply connection at centre back or at the top
• Geberit Sigma concealed cistern 12 cm (UP320) with front actuation
• Dual flush with Sigma80, Sigma60, Sigma50, Sigma20, Sigma01 or Bolero flush plates
• Single flush with Sigma10, Rumba, Mambo or Tango flush plates
• Not suitable for use with flush buttons
• The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length
• Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
• Telescopic profiles to fasten to the wall and for fastening panelling
• Telescopic profiles with detent mark
• Wall fixture variable from 30deg to 60deg
• Narrow leg supports allow for lateral offset of the drainage pipe
• Support for front, top and lateral panelling

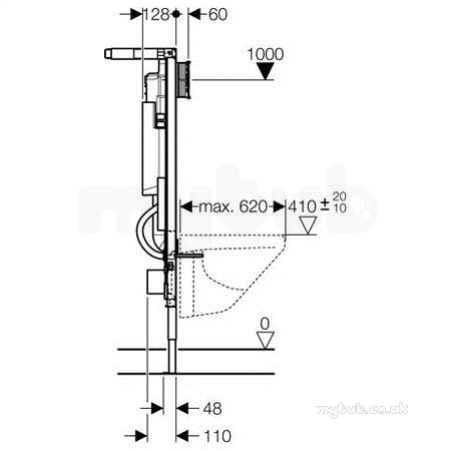

• Variable element depth (see )
• For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1)
• Flush valve features settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1)

** Obsolete and no longer available 28/09/2023.
