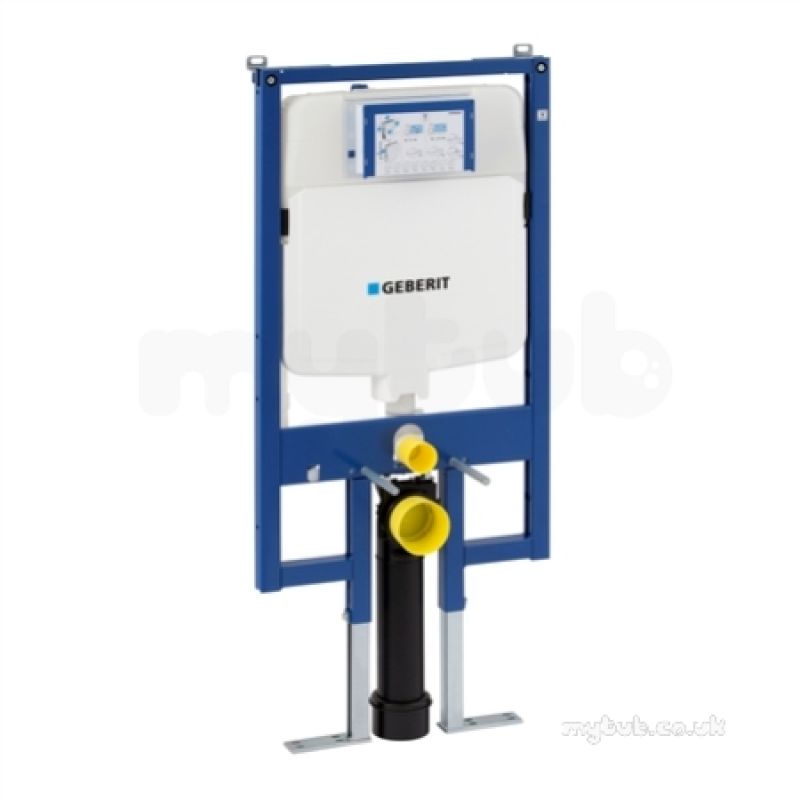

Duofix Wc Frame 112m C/w Sigma Cistern 8cm

26%

• Self-supporting
• Frame height 1120 mm
• M12 fastening for ceramic appliances, fastening distance 18 cm or 23 cm
• Front actuation only
• Concealed cistern fully insulated against condensation
• Protection cover for service opening can be mounted without tools and cut to length
• Water supply connection at the top, offset to the left side
• Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
• Connection hose to angle stop valve can be screwed without tools
• Sound-absorbing actuator rods, tool-free, fast adjustment
• Single flush with Sigma10, Rumba, Mambo or Tango flush plates
• Dual flush with Sigma80, Sigma60, Sigma50, Sigma20, Sigma01 or Bolero flush plates
• Adjustable flushing volume
• Not suitable for use with flush buttons
• The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length

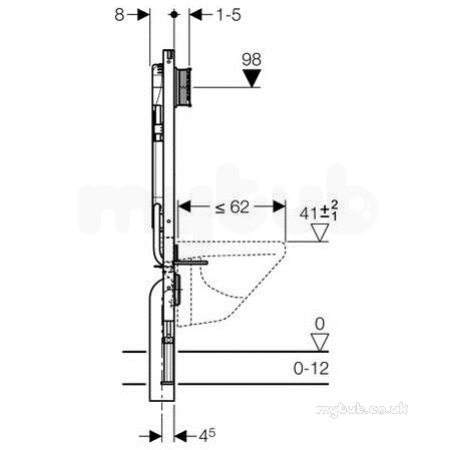

• Outlet bend depth with vertical connection 9 cm
• Fastening for outlet bend adjustable in depth and sound-absorbing
• Installation depth at least 8 cm with vertical drainage connection
• Frame with C profile 40/40 mm
• Powder-coated frame, ultramarine blue
• Feet galvanised, adjustable 0-12 cm
• Self-locking feet for tool-free alignment of the frame, (friction feet have to be locked with spanner)
• For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1)
