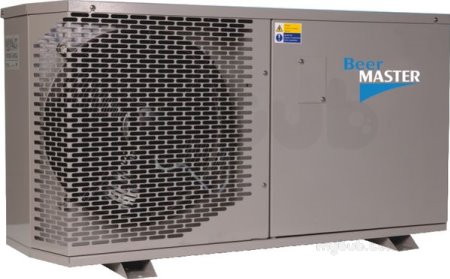

Beermaster Bmo-200-3 3 Phase Condensing Unit Scroll 2.0hp

27% 27 percent off rrp

Department:

Climate Center Beermaster

Beermaster Bmo-200-3 3 Phase Condensing Unit Scroll 2.0hp

Nominal sound pressure levels: 41 to 49 dB(A) at 10m
Lower sound levels are achieved using the acoustic kit. Housing: Fully weatherproof, with powder coat grey gloss finish (RAL7036)
Compressor: BMO 100 8 Hermetic complete with crankcase heater BMO 120 to 550 8 Scroll complete with crankcase heater
Liquid Line: Receiver and sight glass
Controls: Externally accessible mains isolator. Contactor. HP and LP pressure switches. Fully wired and enclosed electrical assembly
Fansets: Single phase, high efficiency, low noise external rotor design, rated to IP44
Service: Maximum access for service maintenance. Simple hinged and removable panels. Lid lifts up and latches, with two positions-full open or front access only
Connections: Liquid and Suction angle service valves, pre-fitted with solder adaptors. External charging/gauge access ports
Installation: Easy brazing to unit connections. Access without need to remove fixings. All components fully accessible from one side.

The New Beermaster from Climate Center is a flexible packaged cooling system, designed to fully incorporate the demands of the modern cellar cooling industry. An extensive range of reliable, efficient, service friendly condensing units and evaporators catering for cooling capacities between 3 and 15 kW, with rated ambient temperatures up to 38°C. Selections are available with cellar temperatures from 4°C to 12°C, which will meet the increasing range of cooling requirements for pubs, clubs and wine bars. In addition, sound levels have been minimised throughout the range of BMO condensing units and BMIE evaporators. Consisting of compact BMO outdoor, weatherproof, housed units aligned with space saving BMIE evaporators now incorporating EC fan technology, the Climate Center Beermaster range is the solution to all cellar cooling applications. Operating two BMIE evaporators will successfully cool cellars with irregular shapes (with one BMO condensing unit.) Temperature is controlled from one evaporator, the other acting as a slave unit. Beermaster BMO condensing units are designed to minimise sound levels, which together with an acoustic kit option enables a further 6 dB(A)reduction, in noise sensitive locations. The BMIE evaporator compact design incorporates a highly efficient EC axial fanset, reducing sound, resonance and vibration, therefore minimising sound break out into bar and accommodation areas.

Manufacture:

Wolseley Own Brand

Notes:

Brand : Beermaster
Dim 1 (mm) : 566
Dim 2 (mm) : 1112
Dim 3 (mm) : 384
Model Number : BMO-200-3
Warranty : 1 Year
Electric Supply : R407C
Phase : Three Phase
Refrigerant Suitability : R407C
Fans : 1
Cooling Operating Range C : 4 to 13 deg C
Fuse Size (Amps) : 16
Max Pipe Run (m) : 34,1
Run Amps : 4,8
Start Amps : 31,0
Max Pipe Run (m) : 34,1
Horse Power : 2
