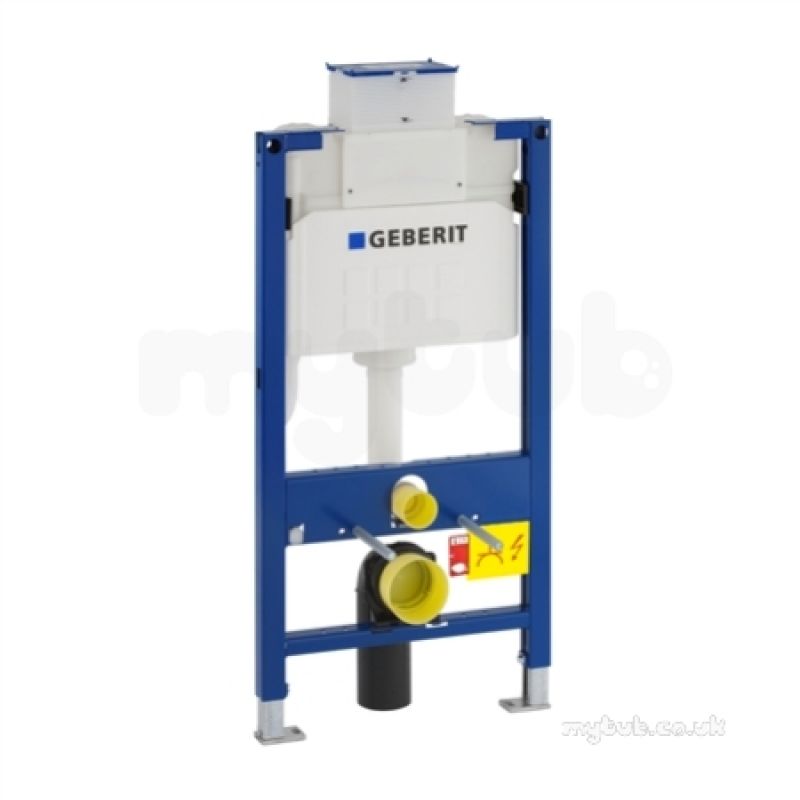

98cm Prewall Wc Frame C/w Brts Front/top

23%

• Self-supporting
• Frame with C profile 40/40 mm
• Powder-coated frame, ultramarine blue
• Galvanised leg supports, steplessly adjustable 0 - 200 mm
• Feet can be retracted 5 cm
• Rotating foot plate, for installation in UW50 and UW75 profiles
• Frame with holes ø 9 mm for fastening in wood frame construction
• Fast adjustment of the actuator rods for flush plate
• Concealed cistern fully insulated against condensation
• Protection housing for service opening, can be cut to length
• Frame height 980 mm
• With wall brackets to allow up to a 200 mm duct. For larger ducts up to 400 mm use extension bolts 111.887.00.1
• Geberit Kappa concealed cistern 15 cm (UP200) with front or top actuation
• Dual flush with Kappa flush plates
• Dual flush with pneumatic button
• Single flush with pneumatic and mechanical buttons
• Water supply connection left
• Fastening for outlet bend sound-absorbing
• Connection hose to angle stop valve can be screw-connected by hand
• For pans with contact surfaces smaller than 170 mm (see accessory 111.847.00.1)
• To reduce flush volume to either 4.5/3 litre dual flush or 4/2.6 litre dual flush requires material number 242.310.00.1 (note: must be used with pans designed for low volume flush)

** Obsolete and no longer available 21/10/2022.
