1/2 Inch Bsp Water Governor 07052-04


Dereve Water Governor -  1/2 Inch Bsp Water Governor 07052-04
Dereve Water Governor -  1/2 Inch Bsp Water Governor 07052-04

36% 36 percent off rrp

Department >

Dereve Water Governor

    1/2 Inch Bsp Water Governor 07052-04

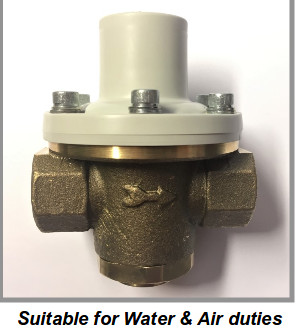

    The Dereve Water Pressure Governor type WG4 has been developed for use on water appliances with capacities of up to 23 LPM (5 GPM). Inlet and Outlet connections are 1/2" BSP parallel, female x female. (formed to accept 15 mm compression fittings, brass nuts and copper olives can be supplied on request). The continuously variable setting of the outlet pressure is obtained by an adjusting screw. (which can be locked In position). The outlet pressure is increased by turning the screw clockwise.

    The body is manufactured from brass and, together with
    other exposed brass components, is chromium plated to
    increase corrosion resistance. The diaphragm, "O" ring and valve pad are made from synthetic rubber. A selection of springs is available to extend the outlet pressure range of the Governor.

    OPERATION

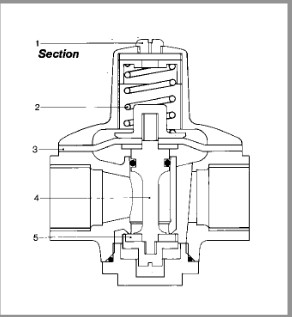

    The pressure above the diaphragm is atmospheric and is maintained by a breather hole in the cap (1). The diaphragm (3) is loaded by means of a spring (2) and is fixed to spindle (4) which has a resilient valve washer (5) positioned to operate against the single valve seat. The top of the spindle is fitted with an "O" ring and as the top of the spindle area is equal to the valve seat area a balance of forces is produced.
    The outlet pressure acting over the effective area
    of the diaphragm opposes the spring force to produce
    equilibrium. Changes of flow and inlet pressure are
    compensated for by the control so that near constant
    outlet pressure is maintained.
Manufacture: Dereve
Dereve
Code#:
07052-04
MyTub Code#: 482537

rrp£82.00
save£29.33
price£52.67

inc vat£63.20

email for overseas delivery charges

1/2 Inch Bsp Water Governor 07052-04 Stock Check check stock here..
