Wilo Ts40/14a 1-230-50-2-10m Ka Sub Pmp

• Inox and composites
• Detachable connection cable
• Wide performance range
• Internal capacitor (TS 40/1~)
• Internal self-switching thermal motor monitoring (TS 40 and TS 50/1~)

WILO TS40/14A 1-230-50-2-10M KA SUB PMP

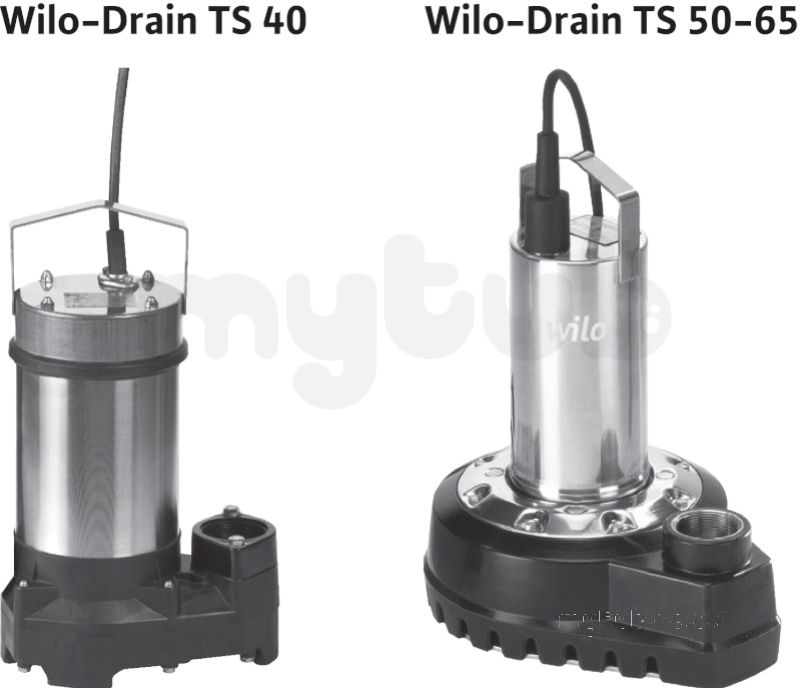

Submersible wastewater pump as submersible monobloc unit for stationary and portable wet well installation.

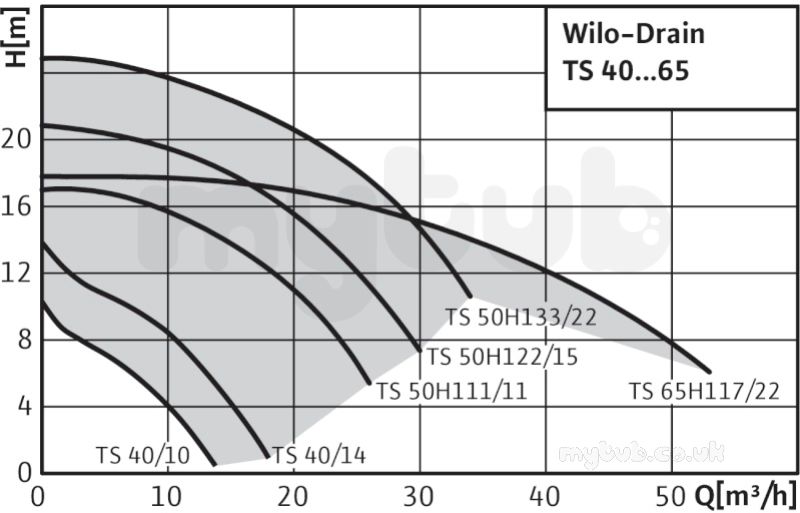

Hydraulics
The output on the pressure side is configured as a vertical threaded connection Rp 1½ (TS 40), Rp 2 (TS 50) or Rp 2½ (TS 65). Semi-open channel impellers with free ball passage of 10 mm are used as the impeller.
Motor
Dry motors as single-phase or three-phase AC motors with thermal motor monitoring. On models TS 40 and TS 50 (1~ only) this monitoring is built-in and self-switching. The waste heat is given off directly to the surrounding fluid via the housing components. As a result, these units must always be immersed for permanent or intermittent operation.
A sealing chamber protects the motor from fluid ingress. The filling fluid used is potentially biodegradable and environmentally safe.
The cable is detachable, oil-resistant and has bare cable ends. The cable lengths are available in length increments of 10 m. The A model is equipped with a float switch and a shock-proof plug (1~230 V/50 Hz) or a CEE plug (3~400 V/50 Hz). The CEE model does not have a float switch and is equipped with a CEE plug.
Sealing
Sealing on the fluid side is done using a bidirectional mechanical seal. On the TS 40, sealing on the motor side is likewise done using a bidirectional mechanical seal. On the TS 50 and TS 65, sealing on the motor side is with a rotary shaft seal.

Manufacture:

Wilo

Notes:

Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Protection class: IP 68
Max. immersion depth:TS 40 = 5 m; TS 50/TS 65 = 10 m
Fluid temperature: 3 - 35 °C
Cable length: 10 m
Free ball passage: 10 mm
Pressure port: TS 40 = Rp 1, TS 50 = Rp 1¼, TS 65 = Rp 2½

Material:

Pump housing PP-GF30
Impeller PP-GF30
Shaft 1.4404
Sealing on motor side: mechanical seal SiC/SiC
Sealing on pump side: mechanical seal SiC/SiC
Static seal: NBR
Motor housing 1.4301

Wilo
Code#:

2063929

MyTub Code#:

629367

PDF File:

Download pdf brochure 0.20mb
