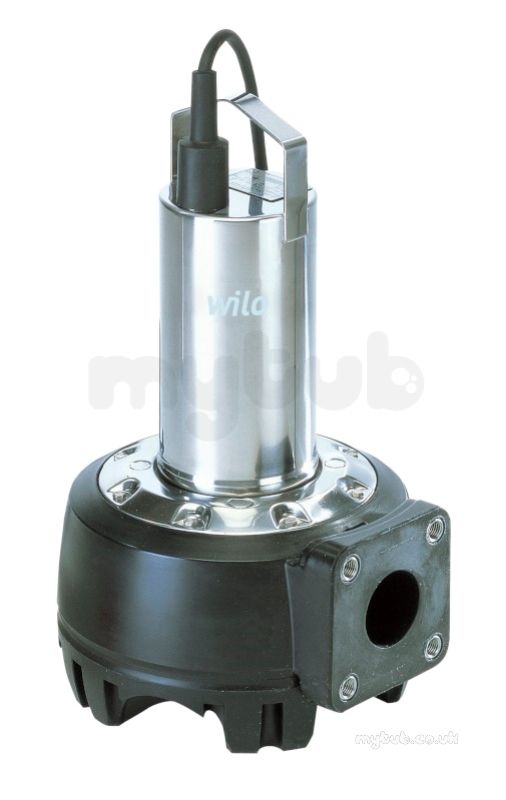

Wilo Tp50e101/55-3-400a Submerisble Pmp

Wilo product

27% 27 percent off rrp

Department:

Wilo Subson Submersible Pumps

Wilo Tp50e101/55-3-400a Submerisble Pmp

• Detachable connection cable
• Stainless-steel glanded motor
• ATEX approval (only for TP 65/3~ without floater)
• Attached float switch (A-model version) enables simple operation
• Low weight
• Motor housing optionally available in 1.4404

WILO TP50E101/55-3-400A SUBMERISBLE PMP
Submersible wastewater pump as submersible monobloc unit for stationary and portable wet well installation.
Hydraulics
The output on the pressure side is configured as a vertical threaded connection Rp 1½ (TS 40), Rp 2 (TS 50) or Rp 2½ (TS 65). Semi-open channel impellers with free ball passage of 10 mm are used as the impeller.
Motor
Dry motors as single-phase or three-phase AC motors with thermal motor monitoring. On models TS 40 and TS 50 (1~ only) this monitoring is built-in and self-switching. The waste heat is given off directly to the surrounding fluid via the housing components. As a result, these units must always be immersed for permanent or intermittent operation.
A sealing chamber protects the motor from fluid ingress. The filling fluid used is potentially biodegradable and environmentally safe.
The cable is detachable, oil-resistant and has bare cable ends. The cable lengths are available in length increments of 10 m. The A model is equipped with a float switch and a shock-proof plug (1~230 V/50 Hz) or a CEE plug (3~400 V/50 Hz). The CEE model does not have a float switch and is equipped with a CEE plug.
Sealing
Sealing on the fluid side is done using a bidirectional mechanical seal. On the TS 40, sealing on the motor side is likewise done using a bidirectional mechanical seal. On the TS 50 and TS 65, sealing on the motor side is with a rotary shaft seal.

Manufacture:

Wilo

Notes:

Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Immersed operating mode: S1
Non-immersed operating mode: S2-8 min, S3 25%
Protection class: IP 68
Insulation class: F
Thermal winding monitoring
Max. fluid temperature: 3 - 35°C
Cable length: 10 m
Free ball passage: 44 mm
Max. immersion depth: 10 m

Material:

Pump housing: PP-GF30 (TP 50), PUR (TP 65)
Impeller: PP-GF30 (vortex impeller), PUR (single-channel impeller)
Shaft: Stainless steel 1.4404
Mechanical seal on pump side: SiC/SiC
Shaft seal on motor side: NBR
Static gasket: NBR
Motor hous

Wilo
Code#:

4029551

MyTub Code#:

633540

PDF File:

Download pdf brochure 0.41mb
