Wilo Rwn1500-mc304em 2505129 Circulating Pump

Wilo product

29% 29 percent off rrp

Department:

Wilo Subson Submersible Pumps

Wilo Rwn1500-mc304em 2505129 Circulating Pump

• Low-noise, self-priming pump ensures almost noiseless system operation
• Corrosion-free
• Can be expanded at any time
• Multi-tank system with replenishment and settling zone for better water quality
• Greatest possible connection flexibility, due to rotating rainwater inlet
• Particularly suitable for retrofitting existing buildings

WILO RWN1500-MC304EM

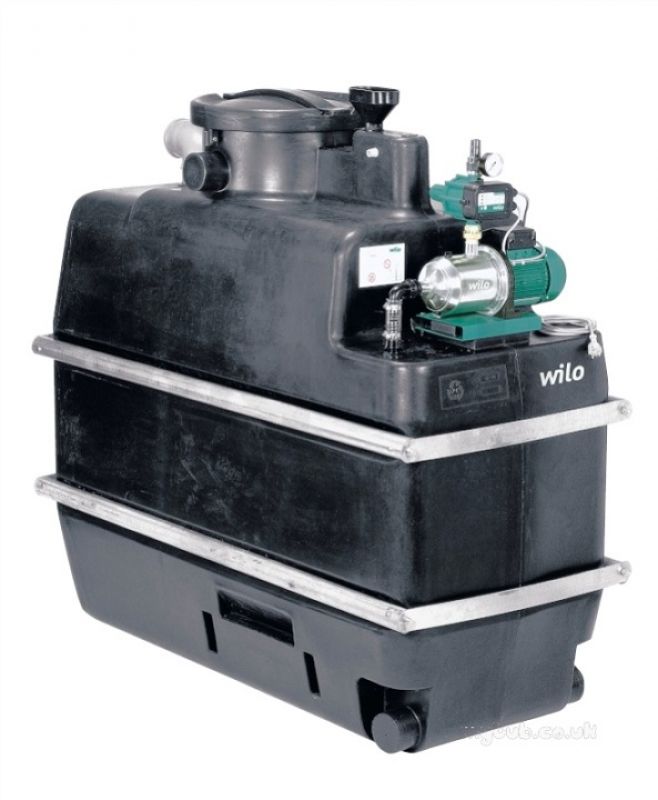

The Wilo rain Collector II reflects years of experience at Wilo in terms of industrially manufactured, professional compact units for rainwater utilisation. Due to the unique multi-chamber storage system (MKS system), the reduction of freshwater requirements to the minimum amount that is essential for ensuring functional capability during dry periods has been achieved. Whereas the entire storage capacity needs to be increased with conventional systems, here replenishment takes place in an MKS system chamber made for that purpose. As a result, the maximum storage capacity is retained for rainwater when rain falls.
Specially coordinated materials and the use of particularly high-quality pumping technology make practically noiseless operation possible. The multi-chamber storage tanks are made of UV-stabilised, black polyethylene (PE), thus providing effective protection against the formation of algae.
The electronic control of the pump with the Wilo-Fluidcontrol makes a diaphragm expansion tank superfluous. In order to ensure optimum usability for the system, both in new buildings and in retrofitting projects, the dimensions of the system were selected in such a way that it would be able to be brought through any door in upright position.
The input connection can be swivelled by 300 degrees. The system can be expanded to include any number of auxiliary tanks, each with a capacity of 1,700 litres. This expansion is also possible within a very short time, even with existing systems. This way the Wilo-RainCollector provides optimum adjustment to accommodate the changing requirements of its users.

Manufacture:

Wilo

Notes:

Mains connection 1~230 V, 50 Hz
Fluid temperature max. +5 °C to +35 °C
Max. operating pressure 6 bar
Replenishment reservoir 1500 l
Protection class IP 54
Connections:
Pressure pipe / pressure side, 1" hose
Inflow pipe HT 100
Inlets HT 100
Connection overflow 2x HT 100
Expansion port 2x HT 100

Material:

Pump housing stainless steel 1.4301
Impeller made of Noryl
Shaft stainless steel 1.4028
Mechanical seal made of ceramic/carbon
Stage chambers made of Noryl

Wilo
Code#:

2505129

MyTub Code#:

630636

PDF File:

Download pdf brochure 0.92mb
