Wilo Dpl40/150-3/2-ie2 2089646 Circulating Pump


Wilo Ipn dpn Glanded In Line Pumps -  Wilo Dpl40/150-3/2-ie2 2089646 Circulating Pump
Wilo Ipn dpn Glanded In Line Pumps -  Wilo Dpl40/150-3/2-ie2 2089646 Circulating Pump

Wilo product

31% 31 percent off rrp

Department: Wilo Ipn dpn Glanded In Line Pumps
  Wilo Dpl40/150-3/2-ie2 2089646 Circulating Pump
    • High-efficiency motors as standard; from 0.75 kW nominal motor power: motors with IE2 technology
• Reduction of space required and installation costs due to double pump design
• Main/standby mode or peak-load operation (by means of external auxiliary device)
• Standard condensate drainage holes in the motor housings and lanterns
• High corrosion protection thanks to cataphoretic coating
• Series version: Motor with one-piece shaft
• Version N: Standard motor B5 or V1 with stainless steel plug shaft
• Bidirectional mechanical seal with forced flushing
• Easy to install thanks to feet with threaded holes on the pump housing for all flange-end pumps

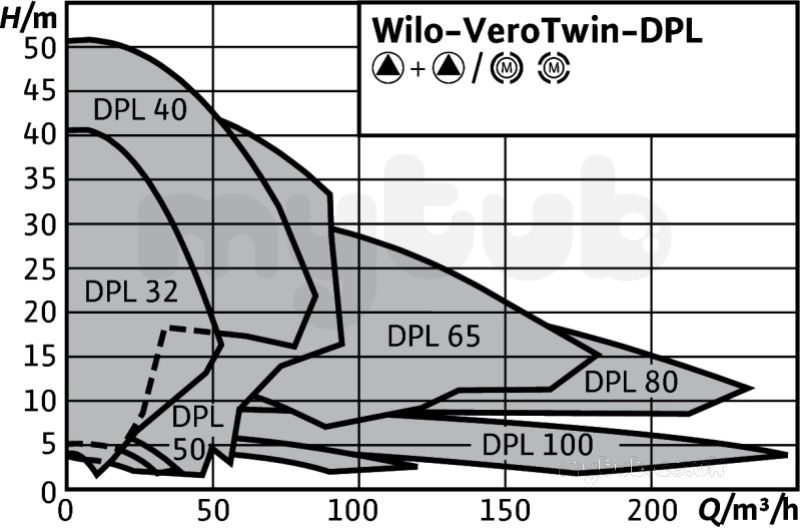

  DPL40/150-3/2 - IE2

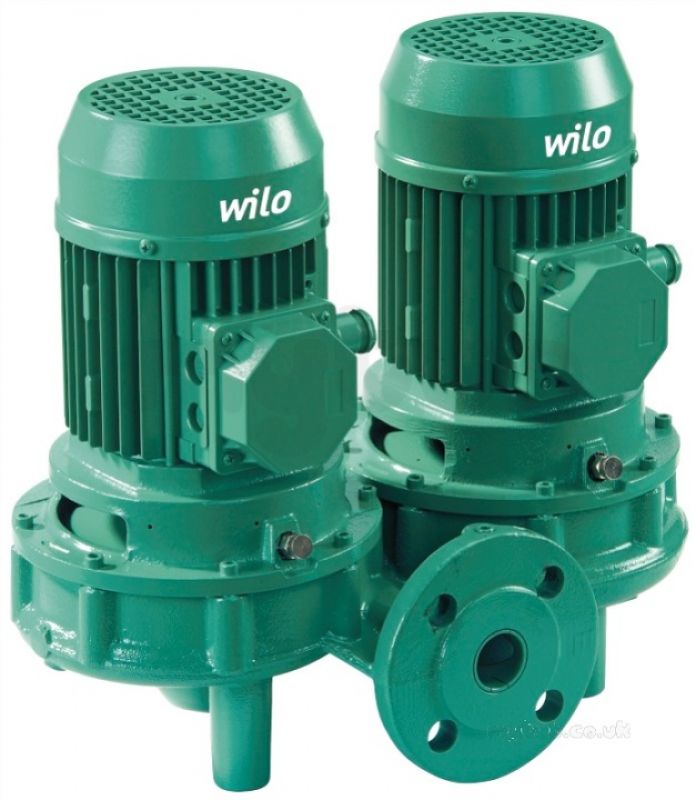

Glanded double pump in in-line design with flange connection
Manufacture: Wilo
Notes: Permissible temperature range -20 °C to +120 °C
Mains connection 3~400 V, 50 Hz (others on request)
Protection class IP 55
Nominal diameter DN 32 to DN 100
Max. operating pressure 10 bar (special version: 16 bar)
Material: Pump housing and lantern: EN-GJL-250
Impeller: PP fibreglass-reinforced /EN-GJL-200 (depending on pump type)
Shaft: 1.4021
Mechanical seal: AQ1EGG; other mechanical seals on request
Wilo
Code#:
2089646
MyTub Code#: 629792
PDF File: Download pdf brochure 0.85mb
PDF File2: Download pdf brochure #2 10.50mb

rrp£4532.42
save£1413.05
inc vat(£3743.24)

price£3119.37

Free UK delivery
email for overseas delivery charges

Stock Check Wilo Dpl40/150-3/2-ie2 2089646 Circulating Pump check stock level here..
