Spirax St14 Bsp Sensor Chamber 20

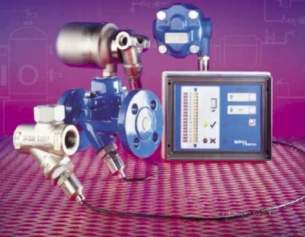

The Spiratec trap fault detection system is designed to operate on saturated steam systems only, to indicate whether a steam trap is leaking steam. When combined with the R1C or R16C automatic trap monitor and WLS1 waterlogging sensor assembly, it will detect if a steam trap has failed closed or is blocked. As standard - The sensor chamber has the sensor connection on the right hand side of the chamber when viewed from the direction of flow. If required - Chambers can be supplied with the sensor connections on the left hand side "L", but must be requested when placing an order, i.e. ½" ST141L.

Chambers are available in two configurations:
1. Fitted with an SS1 standard sensor for steam leak detection only.
2. Without a sensor fitted. A WLS1 waterlogging sensor assembly is available separately for steam leak and waterlogging applications.
