Specflue 150mm Iflue 115mm Pipe 0406006

iFlue is available in six internal diameters, ranging from 100mm to 250mm, and consists of Lengths, Fittings and Support components. Each chimney element is fabricated with a fully welded 316L (1.4404:X2CrNiMo 17-12-2) stainless steel inner liner and a grade 304 (1.4301:X5CrNi 18-10) outer case. The 25mm annulus between the two walls is insulated with a high thermal performance auger injected mineral fibre to a mean density of 250Kg/m3. All flue gas carrying components are joined together with a simple push fit joint with the male end providing a slight taper to ensure ease of installation, while the 30mm of engagement offers a strong structural joint. The joint must then be finished with a Locking Band, which is included with the component.

Application

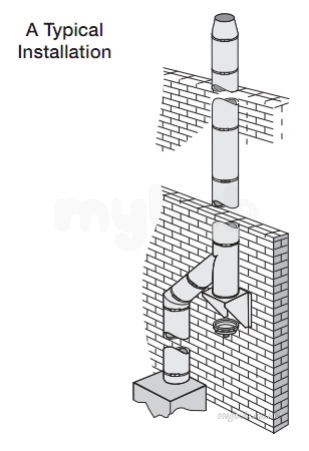

iFlue is designed to be used both internally and externally as a fully supported structure, and must be installed in accordance with National and Local Building Regulations and Standards. Where iFlue is being used on a wet system such as a chimney system serving a high efficiency condensing boiler, adequate provision must be made for the removal of condensates from the system. To encourage adequate drainage of condensates through the system, no sections of the system should run at an angle of less than 5° from the horizontal. The range includes specific components including a Condensate Collector, 95° Tee and 85° Elbow, all to enable the chimney system to be installed so that condensation will run back through the system to suitable drainage points.
