Grundfos Np Tpd 50-120/2 1ph 50mm Pump 96402120

Grundfos Residential Commercial Hvac

Grundfos Np Tpd 50-120/2 1ph 50mm Pump 96402120

Grundfos 50-120/2 pump 50 mm 1 ph
NEW PATTERN - FITTINGS NOT INCLUDED


• Optimised hydraulics for high efficiency
• Reduced power consumption
• High-efficiency motors IE3 motors
• Top-pull-out design
• In-line pumps allow for straight pipework and thus often reduced installation costs and space
• The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seal
• Pump housing and pump head/motor stool are electrocoated to maintain pump efficiency over a longer period of time
• TPE, TPED - pumps with built-in frequency converter

GRUNDFOS NP TPD 50-120/2 1PH 50MM PUMP

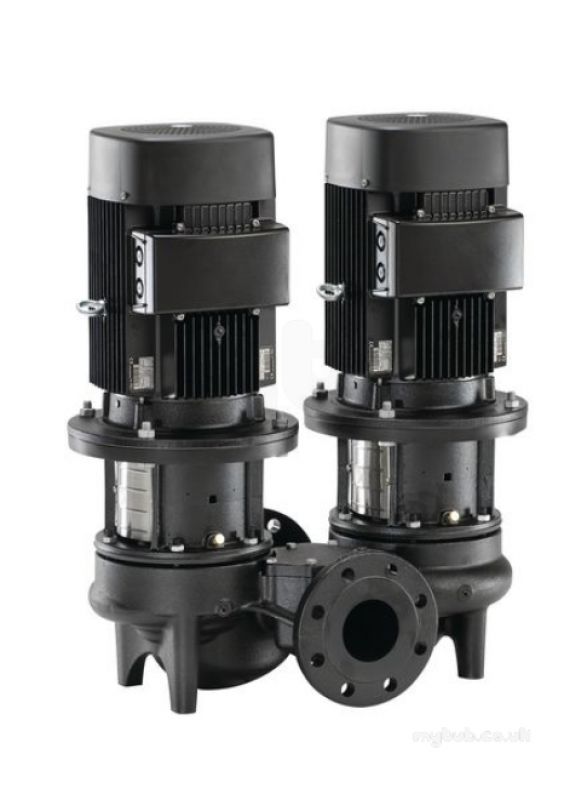

Grundfos TP and TPE vertical in-line pumps are used in a variety of applications. The pumps are all single-stage, in-Line centrifugal pumps with standard motor and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pumps and motor are separate units.

Two different models of vertical in-line pumps are available. Please note that there are a number of specific product variants available for each model. Detailed information on these variants can be found in Grundfos WebCAPS.

TP Pump
This pump model is characterised by high reliability and efficiency. Quiet, highly efficient IE3 motors are standard components. All TP pumps are electro-coated to ensure a high corrosion resistance.

TPE Pump

TPE motors have a built-in frequency converter, allowing different control methods to be employed. TPE pumps offer energy saving benefits and increased comfort.

Applications

Vertical in-line pumps are used in commercial buildings for air conditioning and heating applications.
