Tmw 32/8 3m Cable 230v Pump C/w Float


Wilo Subson Submersible Pumps -  Tmw 32/8 3m Cable 230v Pump C/w Float
Wilo Subson Submersible Pumps -  Tmw 32/8 3m Cable 230v Pump C/w Float

Wilo product

Department >

Wilo Subson Submersible Pumps

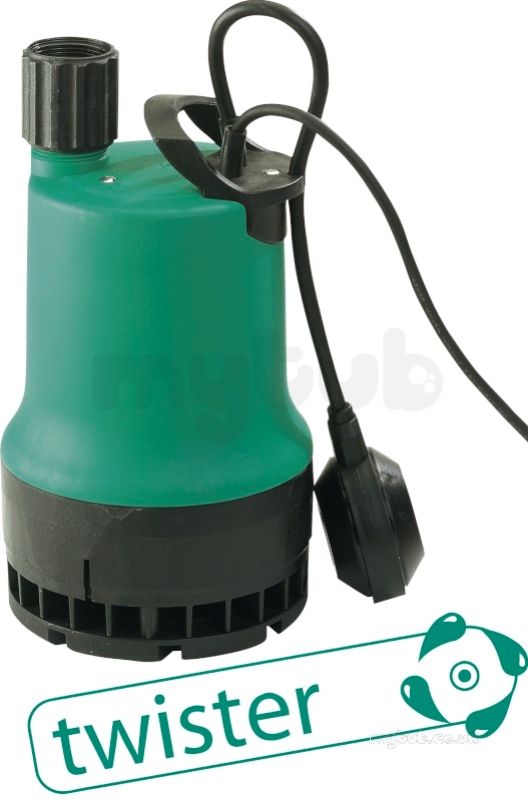

    Tmw 32/8 3m Cable 230v Pump C/w Float
    • Constantly clean pump sump due to patented integrated turbulator (TMW)
    • Minimal residual water level of 2 mm (TMR)
    • For aggressive fluids (HD version)
    • With float switch (A version)
    • Incl. hose connection and 10 m cable
    TMW 32/8 3M CABLE 230V PUMP C/W FLOAT
    Submersible pump suitable for stationary, fully automatic operation. A pressure hose of appropriate length is connected for mobile use, while a pipe is connected to the pressure port for stationary applications. A residual-current-operated protection switch for a trigger current of 30 mA that is to be provided onsite (regulation concerning outdoor installation) must be utilised in accordance with EN 60335-2,41.

    The pumps of the TM series are suitable for drainage applications with a multi-channel impeller and a free ball passage of 10 mm according to EN 12050-2 (except TMR).

    The pump is continuously cooled by the fluid between the outside shroud of the pump and the stainless steel motor housing. The serially installed thermal motor protection assures a permanent protection of the pump. The pump is equipped with a 3 or 10 m connecting cable with shockproof plug and a float switch (not TM 32/8-10M).

Manufacture: Wilo
Notes: Mains connection 1~230 V, 50 Hz
Protection class: IP 68
Submersion depth max. 3 m
Fluid temperature 3 - 35 °C, max. 90 °C for short periods up to 3 min.
Cable length 3 to 10 m, depending on type
Free ball passage 10 mm (TMR: 2 mm)
Pressure port Rp 1 ¼
Material: Pump housing PP-GF30
Impeller PPE/PS-GF20
Shaft 1.4104 (AISI 430F)/1.4404 (AISI 316L) (for TMW 32/11 HD)
Shaft seal: NBR on motor side, carbon/ceramic on pump side
Motor housing 1.4301(AISI 304) / 1.4404 (AISI 316L) (with TMW 32/11 HD)
Wilo
Code#:
4048413
MyTub Code#: 306970
PDF File: Download pdf brochure 0.51mb
29% 29 percent off rrp Tmw 32/8 3m Cable 230v Pump C/w Float Stock Enquiry check stock here..
rrp £373.66
save £106.60
price £267.06

(inc 20% Vat £320.47)
